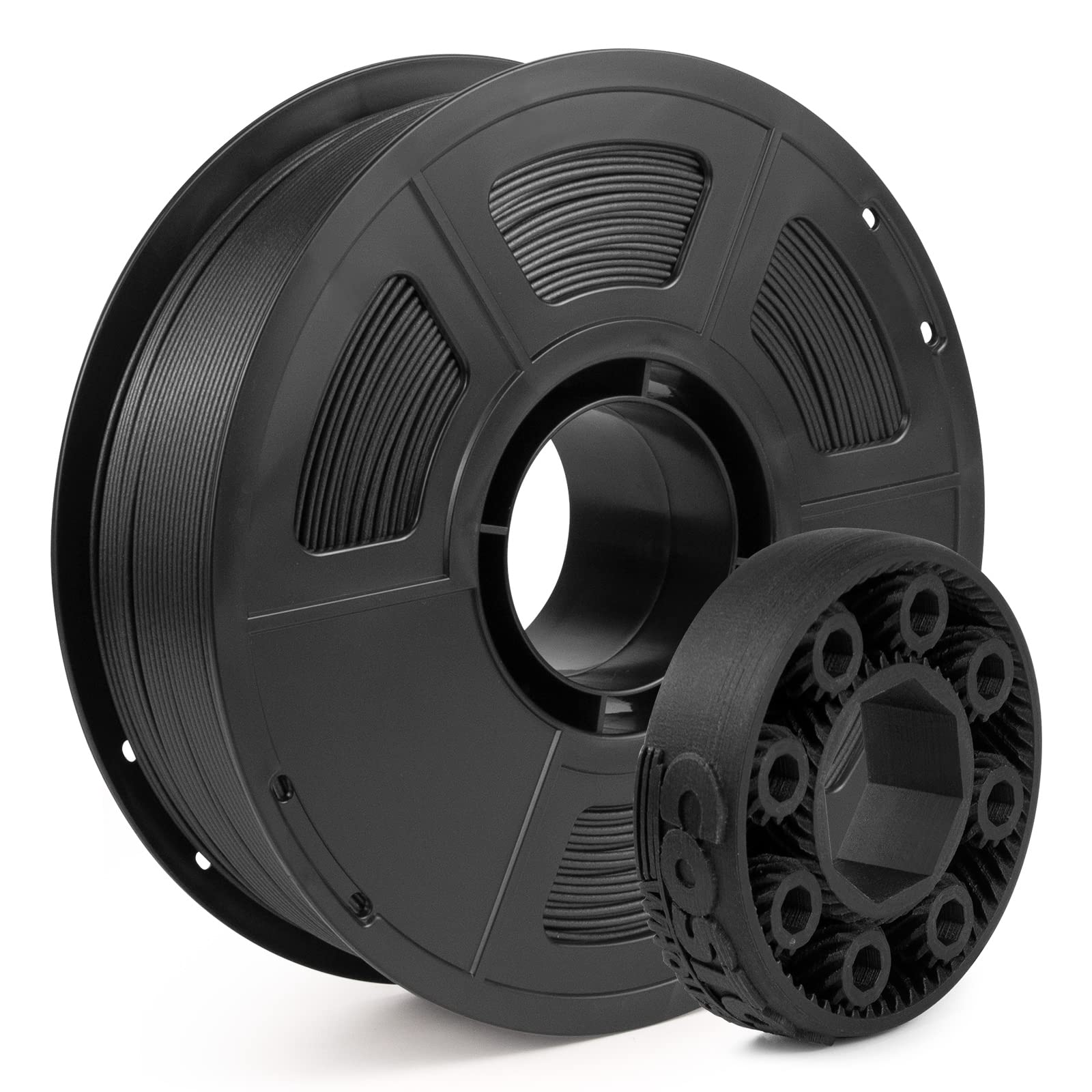

Premium 1.75mm Carbon Fiber ABS Filament - High Strength & Lightweight 3D Printing Material, 1kg (2.2lbs) Spool for Professional 3D Printers - Ideal for Automotive Parts, Drone Components & Industrial Prototypes
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:99169587
Product Description
iSANGHU Carbon Fiber ABS 3D Printer Filament About iSANGHU ABS Carbon Fiber Filament iSANGHU Carbon Fiber 1.75mm abs filament is created by adding 20% high-rigidity carbon fiber on the basis of ABS. Its higher modulus, higher mechanical strength, and higher rigidity are further improved, and also bring better printability, dimensional accuracy, and lower shrinkage. It is commonly used in 3D Printing for applications requiring torsional, tensile, and impact strength, such as functional prototypes, tools, fixtures, end-use parts, pump impellers, mechanical gears, and precision and engineering components in robots, drones, automotive and aerospace industry. Engineered Precision and Material Property Dimensional Accuracy+/-0.02mm that maximizes precision printing performance and compatibility with all major FDM printer brands. It is an ideal choice for high-performance applications. Melt Flow Index (g/10min): 13(220℃/2.16kg)Tensile strength (X-Y): 30.84(MPa)Elongation at Break(%): 6.47Flexural Strength: 36(Mpa)Flexural Modulus: 1233(Mpa)IZOD Impact Strength: 3.49(kJ/㎡) Smart Fiber Enhanced Technology Smart Fiber Enhanced Technology turns carbon into fibers 5-10 microns wide that are aligned following the axis of the material, which greatly improves the mechanical properties of ABS-CF 3d printing filament carbon fiber, resulting in no warpage and ease of printing. High Mechanical Strength ABS carbon fiber printer filament has higher strength and rigidity, Better Impact Resistance, and Wear Resistance than regular abs black filament material. suitable for applications requiring torsional, tensile, and impact strength. High strength-to-weight ratio iSANGHU carbon fiber abs 3d printer filament 1.75mm has a very high strength-to-weight ratio and is extremely rigid. High Heat Tolerance iSANGHU abs carbon fiber filament 1.75mm is tough and heat resistant enough to be used in the field of heat dissipation. Specification and Print Settings: Material: 80%ABS+20%CF Color: Matte Black Filaments Net Weight: 1 kg (2.2 lbs) Diameter and Accuracy: 1.75 mm +/- 0.02 Packaging: Vacuum sealed with desiccant Nozzle: Stainless steel nozzle and larger nozzle (0.6mm or larger) Recommended Extrusion/Nozzle Temp: 220 - 260℃ (428℉~ 500 ℉) Bed temperature: 80 - 100°C(176 - 212°F) Printing speed: 40 - 100mm/s Compatibility: It is compatible with nearly all 3D printers, including Ultimaker, MakerBot, Flashforge, XYZ printer, Lulzbot, Zortrax, MK3, Ender 3, Monopriceetc. Tips: 1. Carbon fiber abs filaments are easy to absorb water, please keep it in a sealed bag or box after using and dry it at 70℃ more than 2H before printing. 2. Carbon fiber black abs filament 1.75 might wear nozzles and extruder gears, it is recommended to use hardened steel nozzles or ruby nozzles, hardened steel extruder gears will be better. 3. ABS carbon fiber 3d printer filament is highly rigid, which also means it is easy to break, so please pay attention not to bend the filament when it is in the feeding tube. 4. Please insert the filament into the reel hole after use to avoid tangles. 5. If there is no print plan within a couple of days, retract the filament to avoid clogging the nozzle. NOTE: Because of shooting light or display resolution, there are some color differences between the pictures and objects. iSANGHU ABS-CF Filament iSANGHU ASA-CF Filament iSANGHU PC-CF Filament iSANGHU PA6-CF Filament iSANGHU PETG-CF Filament iSANGHU PLA-CF Filament Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.0 out of 5 stars 533 4.0 out of 5 stars 533 4.0 out of 5 stars 533 4.0 out of 5 stars 533 4.0 out of 5 stars 533 4.0 out of 5 stars 533 Price $30.17$30.17 $29.74$29.74 $39.77$39.77 $39.84$39.84 $25.49$25.49 $22.94$22.94 Filament Type 80%ABS+20%CF 80%ASA+20%CF 80%PC+20%CF 85%PA6+15%CF 80%PETG+20%CF 80%PLA+20%CF Tensile Strength (X-Y)(Mpa) 30.84 44.71 34.64 47.6 30.23 24.9 Elongation at Break(%) 6.47 5.15 6.74 5.253 4.35 6.9 IZOD Impact Strength(Kj/m2) 3.49 4.0 5.45 7.95 2.99 3.75 Nozzle Temperature 220℃ - 260℃ 260 - 280℃ 250 - 270℃ 250℃ - 290℃ 220℃ - 250℃ 190℃ - 230℃ Bed Temperature 80℃ - 100℃ 80℃ - 100℃ 80℃-100℃ 80℃ - 100℃ 60℃ - 75℃ 45℃ - 60℃ Fan Speed 0% 30-50% 0% 0% 30-70% 30-70% Printing Speed 40-100mm/s 40-60mm/s 30-100mm/s 30-100mm/s 40-130mm/s 40-130mm/s
Product Features
Excellent Mechanical Properties iSANGHU cf-abs filament 1.75mm is an enhanced composite carbon fiber ABS material, developed with the latest formula. ABS carbon fiber filament is composed of 80% ABS and 20% carbon fiber and features lightweight, high strength, and toughness-enhanced. Not easy to become brittle and deformed compared with regular abs black filament. ABS carbon fiber filament 1.75 is an ideal choice for high-performance applications.
Low Shrinkage & Good Layer Adhesion iSANGHU ABS-CF 3d printer filament abs is a worry-free product that has great bed adhesion, very consistent color, and dimensional accuracy. The low shrinkage and stable printing dimensions make the fusion between the layers very good to obtain an even better bridging result.
Improved Printability and Matte Finish Combining 20% carbon fiber, this carefully formulated blend ensures the filament is easy to be fed and printable and makes the final print look very smooth and high quality. Carbon fiber ABS 1.75mm filament Works perfectly with most FDM 3d printers on the market, such as MK3, Ender 3, Monoprice FlashForge and etc.
Wide Industrial Applications The carbon fiber filament 3d printing materials enable lightweight and durability, suitable for applications requiring torsional, tensile, and impact strength such as functional prototypes, tools, fixtures, end-use parts, pump impellers, mechanical gears, precision, and engineering components, widely used in robots, drones, automotive and aerospace industry.

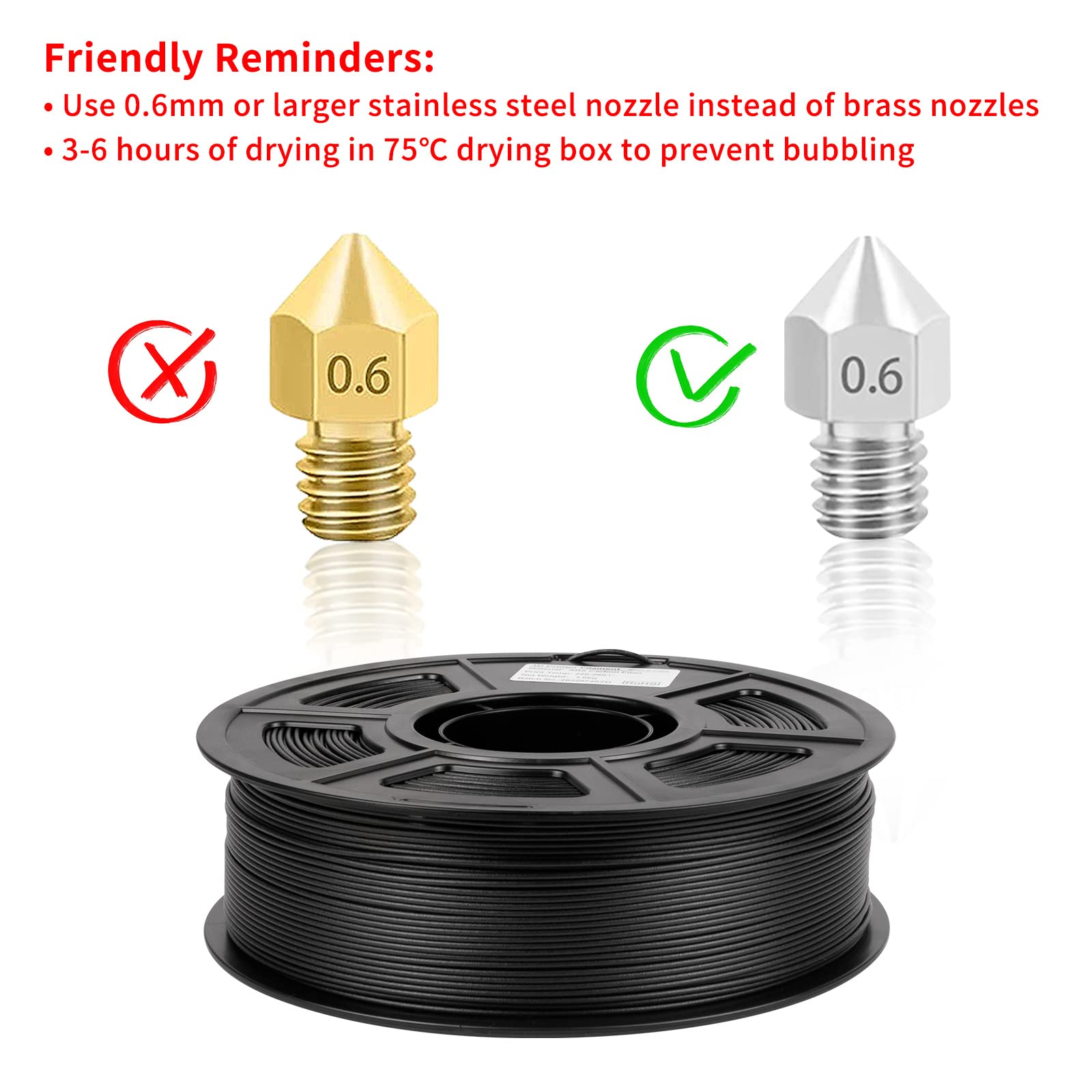

Tips for Printing Due to the addition of carbon fiber, this carbon fiber ABS black metal filament can wear out and clog stock 0.4mm brass nozzles rapidly. A larger diameter (0.6mm or more), abrasion-resistant steel nozzle is highly recommended, and keep your nozzles clean between every several prints or so. For a better finish and layer adhesion, we would also suggest drying it before printing. Print Temp 220°C - 260°C, Bed Temp 80°C - 100°C, Fan Speed 0%, Print Speed 40-100mm/s.
Customer Reviews
This filament has been more than impressive. I was initially concerned with the higher price tag but it did not disappoint whatsoever. With typical engineering filament precautions in place such as an enclosed printer, 100c capable bed, 300c extruder and low fan speeds, it prints easily. so easily in fact the temps were backed off and settled at around 260c hotend 90c bed. I started to really push the filament and kept my normal asa speeds (120 outer wall 160 inner) and it kept up no issues. Spot on diameter, im about halfway through the spool and no crossovers, neatly wound. It flows easily so there's no tendency to buckle inside the extruder as some more viscous filaments tend to do.The carbon fiber blend surface texture is typical of what you would see in many other asa/abs/petg blends which means the layer lines are almost invisible. Where this filament truly shines though is that none of its properties have been sacrificed for its looks. We don't know what the blend is but rather than some petg PC derivative that fails under 90c, this keeps going. It maintains at LEAST(there's a however coming) a 100c thermal deformation temperature. which is what iSanghu says it should be new, HOWEVER(here it is), i observed this to be substantially higher like upwards of 120c and more typical of a true PC filaments temperature. however however, I have not completed testing its point of failure but will update when able.I was initially skeptical of this filament. So many other manufacturers sacrifice temp resistance and strength in favor of beauty and ease of printability. Those same companies are also cutting corners and turning out average level "engineering" filaments. This filament is not thatDue to my concerns with this higher priced filament and the feeling i may be let down again, I reached out to iSanghu and asked about the filaments warp tendency and if I was going to be cursing at this filament the way i sometimes do with nylon. I've messaged a few manufactures and while most are great companies, these guys are truly a class act. I feel like finding a company where you feel like your concerns are actually taken into account these days is extremely rare. Where you feel like they're listening, working with you, and developing the product we want vs the product they dont care if we want but spend more time throwing at us anyway. Instead companies focus more time and attention into the art of "pretending" to listen to the customer. They focus energy and effort to make the customer believe that our opinion is valued and our feedback is making a difference. these guys actually care and they know keep us happy makes them happy. win win. At the same time, all time great filament makers are falling from grace and cutting corners in their filaments hoping that it wont be noticed, yet it is. iSanghu is making moves, their catering products directly to us and doing so at not a breakneck pace, as innovation takes time, but certainly steady researched pace and overall faster than the others can fix the corner cutting and attempt to salvage what reputation they have left. If iSanghu keeps it up and keeps giving us the specialty filaments with the characteristics we want and pulling the filaments that don't cut it, they'll be on top in no time. they got my vote 100%tl:dr easy to print strong, beautiful 260hotend 90c bed around 20% fan, 120 outer wall 150 inner. High temp resistance with unknown ceiling temp. will update when highest thermal deformation temp duplicated in succession. iSanghu will take care of you should you have any issues.
